As requested by YamahaFan, Ive done the calipers myself, and documented it. This would be using a 1992 Kawasaki Ninja ZX-6D with two front 4-piston calipers.

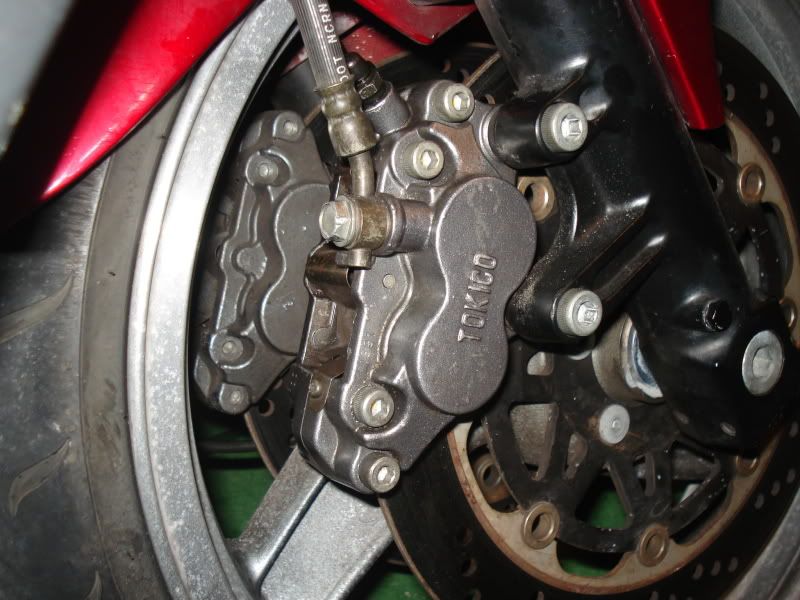

First you will start off with a caliper looking something like this:



This is a typical brake caliper, in this case its a 4 piston (two on each side) caliper setup. My front brakes.

First thing you will want to do is make sure you have the correct tools and chemicals. Including:
Proper allen wrench to take the caliper off the rotor, and the proper wrench to take the caliper apart. Also a screwdriver to take the plate off the brake pads themselves, as well as to take the resivor top off. I use DOT4 Prestone Brake Fluid, brake cleaner, and a little bit of WD-40 in this process if things get messy.

And in this picture you will see a Syringe, and a cut in half water bottle, this is what i use to suck fluids, and/or add fluids to the main resivor. Not pictured at the moment is clear tubing i use when bleeding my brakes so I can see the color of the fluid coming out.



And the chemicals and brands I used:

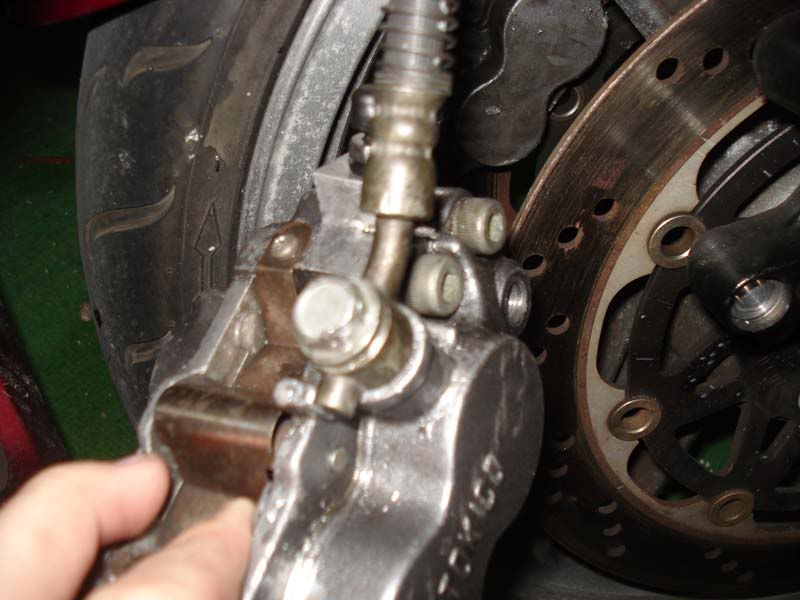

Ok, now start off by taking the caliper off of the rotor using the main two screws that attack it to the front forks and examine your caliper and how you get the brake pads off. In this case its just two screws and a metal plate I take off. BUT DONT TAKE THE BRAKE PADS OFF YET



This next step will save you quite a bit of trouble if you do it before hand.

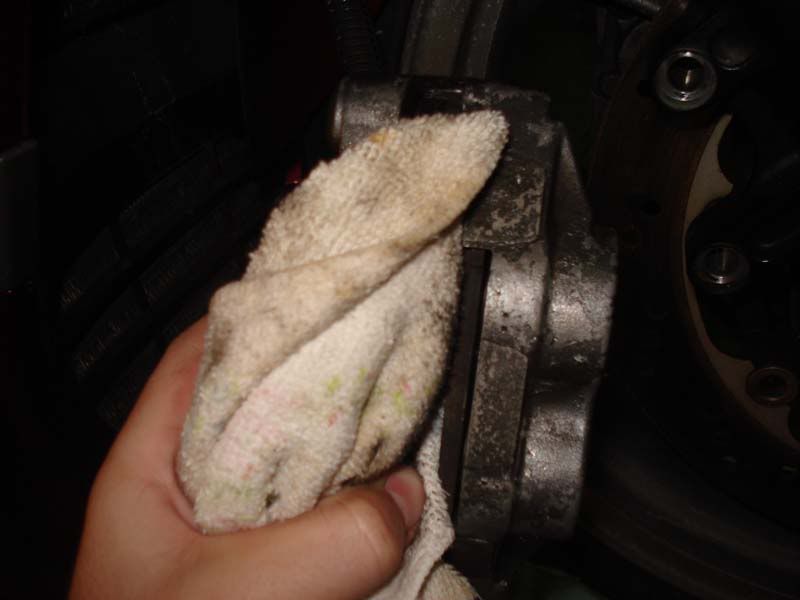

What you will want to do is put a rag between the brake pads and pump the brakes MAKING SURE YOU FINGERS ARE NOT IN THE WAY and make sure all the pistons are as far out as they come. Leaving the brake pads on allows you to adjust with a wooden tool (by simply sliding it between the brake pads and prying them apart) if your brake pads are coming out unevenly

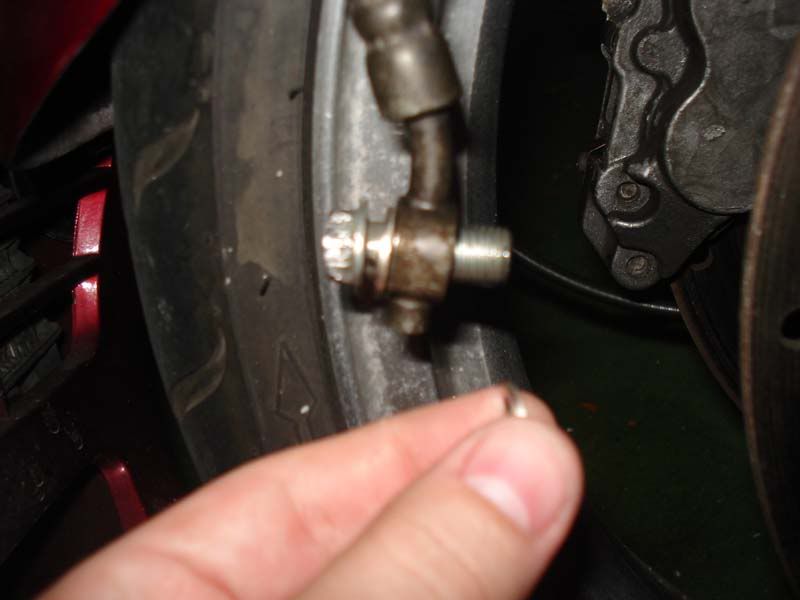

Next you will remove the brake line from the caliper and make sure you hang on to the two metal washers on top and bottom like so:



And this is what it should look like after:



Now is the fun part. Make sure you have plenty of rags down on the ground, and around any painted objects or anything you dont want to get brake fluid on (the stuff is nasty!) And open the calipers through the four screws using your correct allen head wrench.

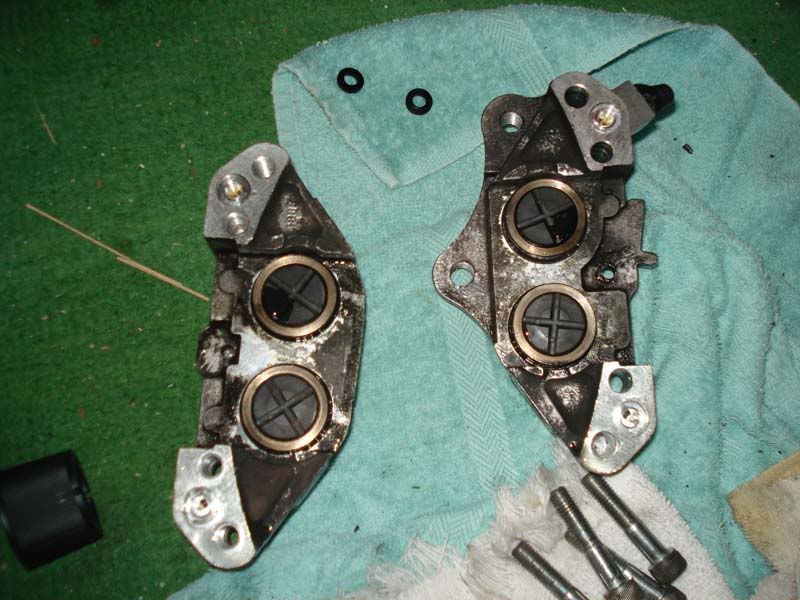

Your caliper should look something like this at this point:

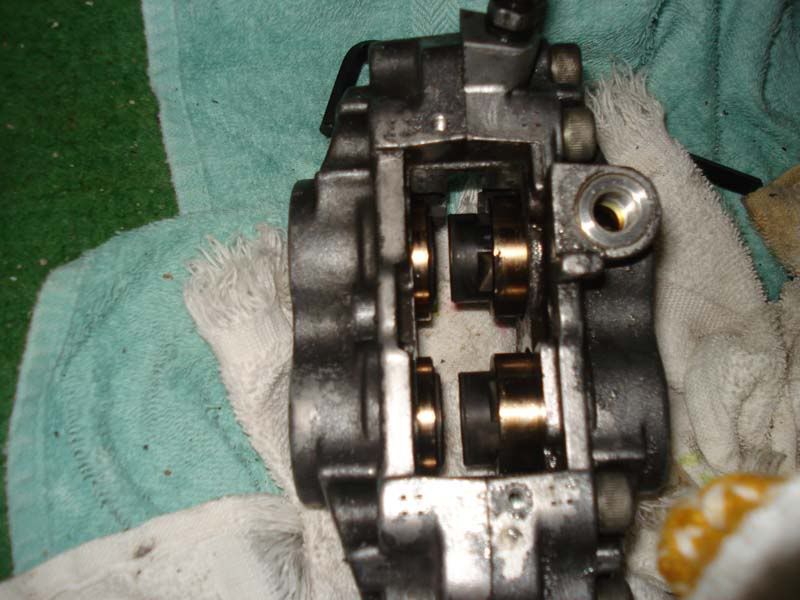

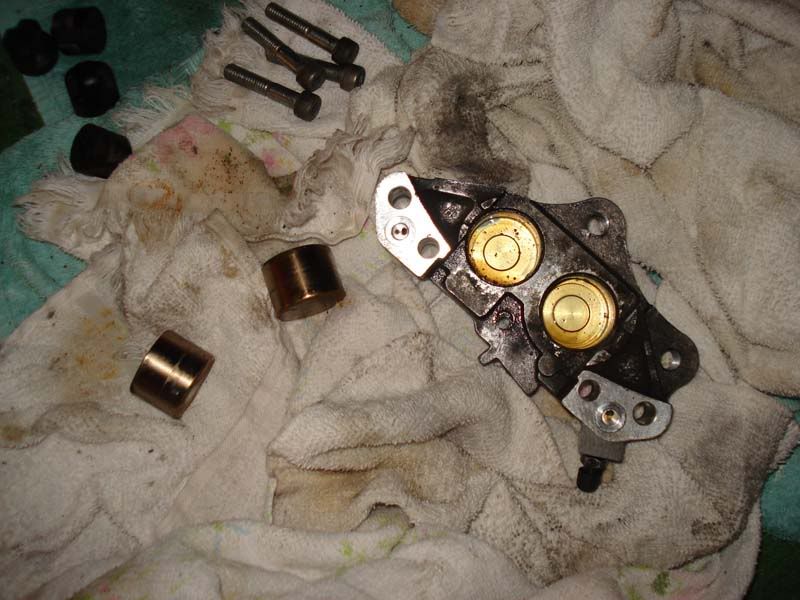

Now you should be simply able to pry the pistons out of their socket with your hands, and if not you can use an air compressor to blow them out through the main inlet (but your brake caliper needs to be bled of fluid first, and put back together need be) So you should end up with something looking like this:

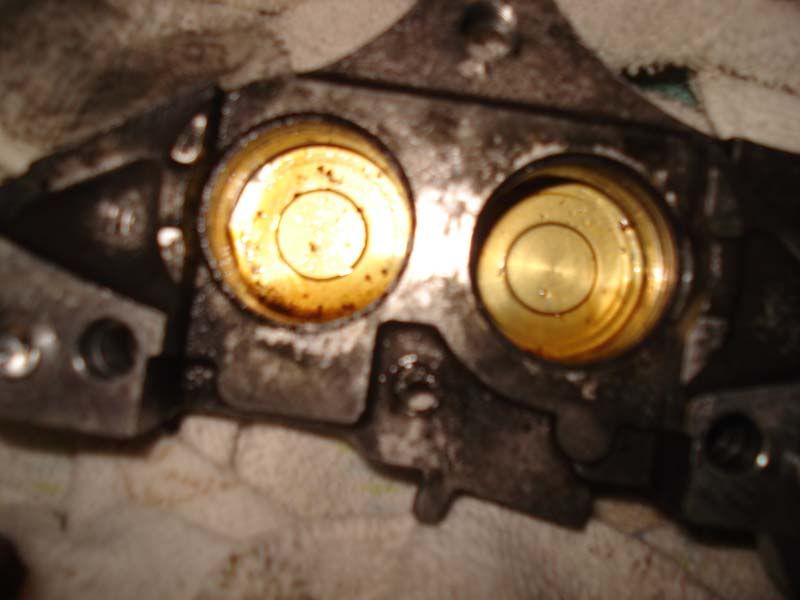

And as you can see... the inside of my calipers were very nasty. Sadly I didnt get an end shot of the inside cleaning, but its normally very shiny silver. And not the yellowish gunk you see now.



Now you basically just clean the inside of the caliper, and all around the piston until you get all the gunk and grime out. Use only a lint free cloth or cotton t-shirt and Q-tips to remove the gunk and grime. Liberally use brake cleaner on anything you need to get clean, this stuff works wonders and evaporates pretty fast after your done with it.

Also be very sure to make sure your o-rings and seals go back to where they were previously, and you MUST replace any orings that may have been damaged or fallen apart during the cleaning.

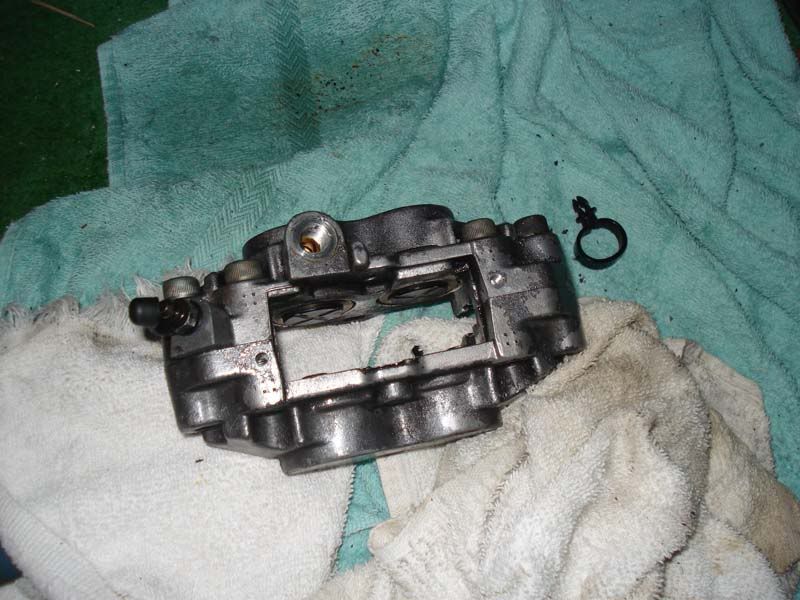

Now put the caliper back together like so:



Then replace the brake pads and brake pad metal cover plate.

After that, put the brake like back onto the caliper and make sure its the same way you had it before hand (pictures work very well if your not familiar with doing this!) Then mount the caliper back onto the rotor carefully replacing all screws.

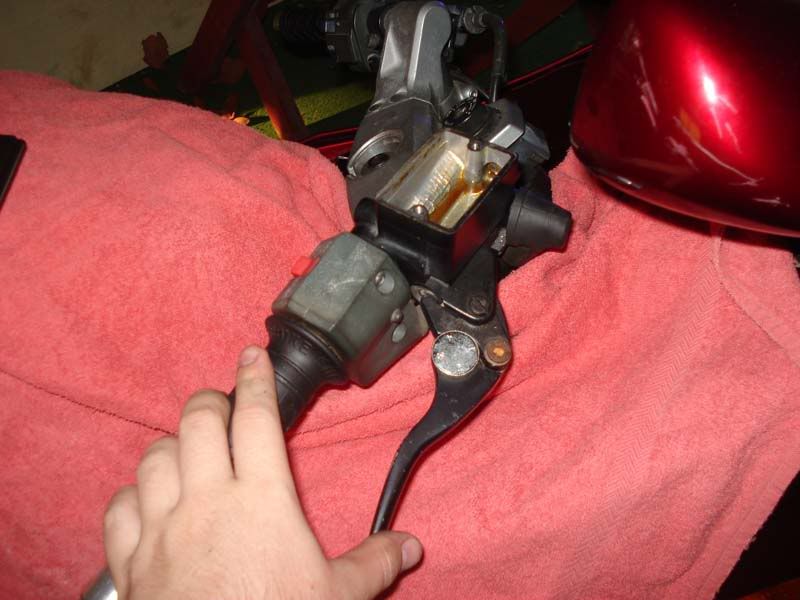

Last step is to bleed the system making sure your resivor never runs dry so air dosent get back into the system




And there you have it! All done and you saved what a mechanic would have charged you $60+ along with anything extra he felt the need to add on.

And as a final side note: If your going to clean your calipers, make sure to do both of them if it applys to your bike, no point in only cleaning one side ^^ Want even brake pressure dont ya!


Ending Notes Added By Viewers:

If you have twin disc's on your bike, when you replace the pads, make certain that both sets of pads have the SAME batch code printed on the side of them. The first letter is dry braking code the second letter is wet braking code. Those are followed by the Batch Code. "You do want even braking don't you?"
Also, the higher the letters, the better the friction material used.
(think of them as buying diamonds only backwards.)


·
Banned
Joined
·
4,381 Posts
I would like to add to that thread.
If you have twin disc's on your bike, when you replace the pads, make certain that both sets of pads have the SAME batch code printed on the side of them. The first letter is dry braking code the second letter is wet braking code. Those are followed by the Batch Code. "You do want even braking don't you?"
Also, the higher the letters, the better the friction material used. ;)
(think of them as buying diamonds only backwards.)

Eric


·
Registered
Joined
·
3,912 Posts
Excellent job. This deserves a sticky in the "How To" forum.


·
Certified Homeless Biker
Joined
·
2,556 Posts
Good job! Yeah bad thing you didn't have the pic inside the caliper after the clean to show off your work :)


·
Registered
Joined
·
64 Posts
Discussion Starter #5
ya ;; totally forgot lol. couldnt believe this difference, guess i was just stunned by the look of it cleaned XD


·
Registered
Joined
·
35 Posts
Thanks for the detailed HowTo. My pistons are stuck on my 88 Radian but I've heard that it could just be lack of use and the cold.

It hasn't been ridden since May '10 and its been < 25 degrees here lately over the last few months so I'm going to wait it out a bit.

I've bled the lines without taking the calipers off but they are still stuck out ( they are grabbing the discs pretty tightly, I have to put all my force into it to roll ). I popped the top off the master cylinder and carefully wedged a flathead between the pad and disc, it loosened up enough to roll around.

I've also read in my book that it may not be a good idea to separate the caliper piecies and to use c-clamps to force out one pair at a time while the line is still connected.

Is that method worth it? Any experience with that way?

Thanks,
Tim


·
Registered
Joined
·
1,133 Posts
if you paint your calipers before you put them back together, you don't have to take them apart the second time to paint them. If your calipers look like that, they haven't had maintenance for along time. Make a hose inspection and pay special attention to the connector connections on the hoses. glad to see you kids doing your own mechanicing.


·
Registered
Joined
·
383 Posts
I bead blasted mine and used a durable clear coat. Still looking nice after ten years. With the '88 radian, "C" clamps can be used to push the piston into the calipers if you are just changing pads and don't want to bleed the brakes. you can also use them to push the piston in some to see if it will free it up. The rubber O-ring on the piston is either stuck to the cylinder bore or worse rusted and the cylinder pitted. You could fill it with something like Marvel Misery oil, let it soak and use air pressure to try and blow it out if you can't work them free. Cushion it somehow and make sure it can't become a missile. If you are lucky the small return hole on the Master cylinder on the brake is clogged keeping it closed. Crack the banjo bolt opened at the master cylinder and see if you can start to lever them opened, so you can free them up and remove the cylinder to clean them up and inspect for pits in the cylinder wall. It was kind of common with some brake Master cylinders to get the return line clogged (it doesn't take much) and then when riding and heating up the brake fluid, the front brake would stop and lock by itself. Good luck with it but at the very least you are going to have to get rebuild kits for the calipers and Master cylinder. The next step is Stainless Steel breaded brake lines.


·
Premium Member
Joined
·
8,069 Posts
OP is old.
However, sometimes the pistons refuse to come out. Best to pump them out before removing the brake hose. If you already did that, put the hose back on and bleed it, then pump them out.
